This is the course project of Production Engineering. The project
involves customer survey, target specification, sketches, CAD modeling, process
planning, assembly planning, bill of material calculation and cost estimation.
From this project I got the idea how a product is developed. You are also
welcomed to visit Paper Punch Group's Final Report.

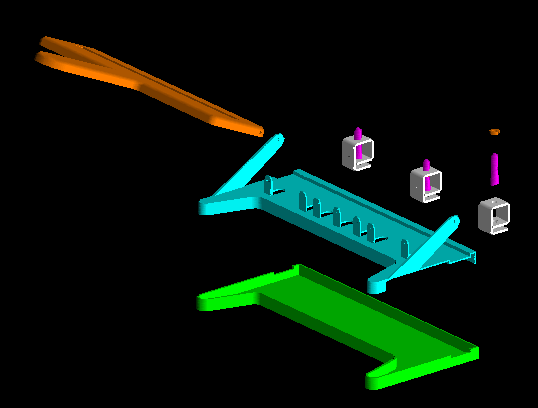

The punch body I built with Unigraphics:

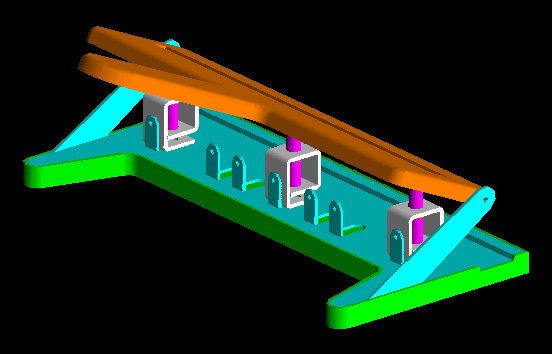

Our group's final punch assembly:
