Machining Strip Width

Machining Strip width Evaluation in 5-Axis Machining of Sculptured Surfaces

With Different Cusp Heights

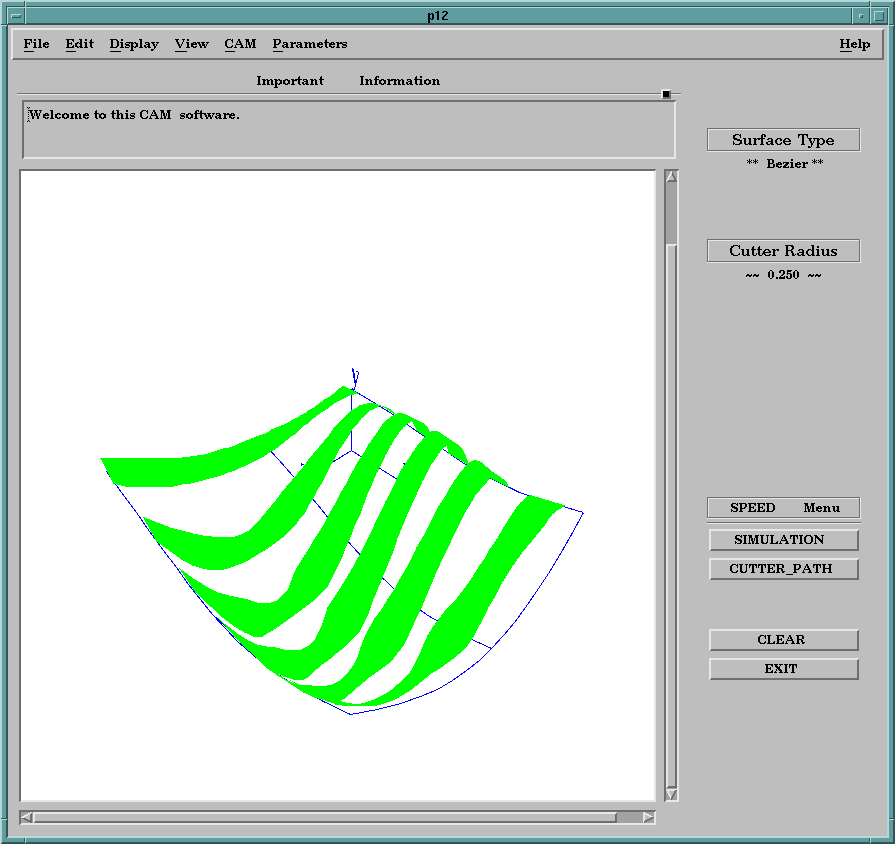

Cusp Height: 0.01inches,Tilting Angles: 10 and 0 degrees, Cutter Radius: 0.25inches

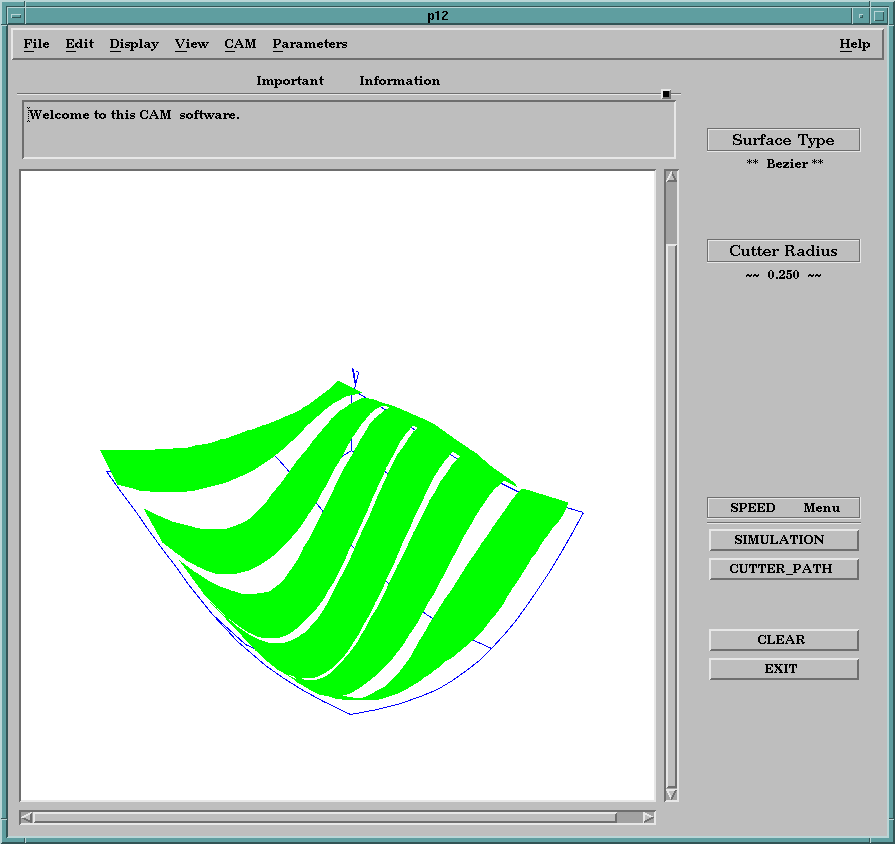

Cusp Height: 0.05inches, Tilting Angles: 10 and 0 degrees, Cutter Radius: 0.25inches

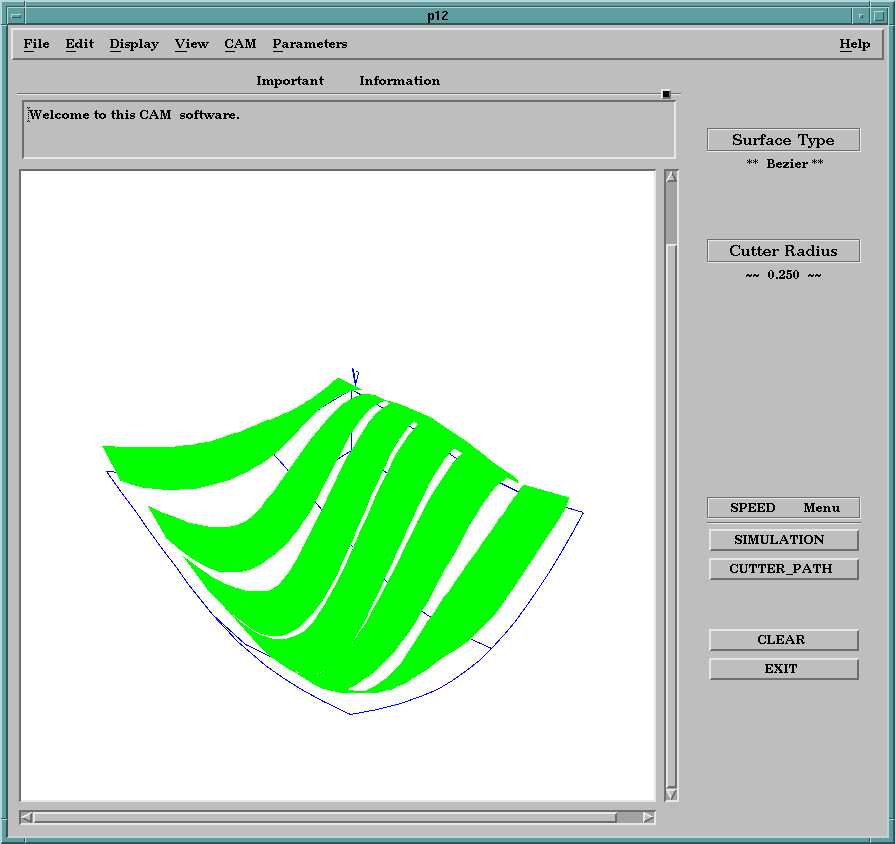

Cusp Height: 0.1 inches, Tilting Angles: 10 and 0 degrees, Cutter Radius: 0.25inches

With Different Tilting Angles

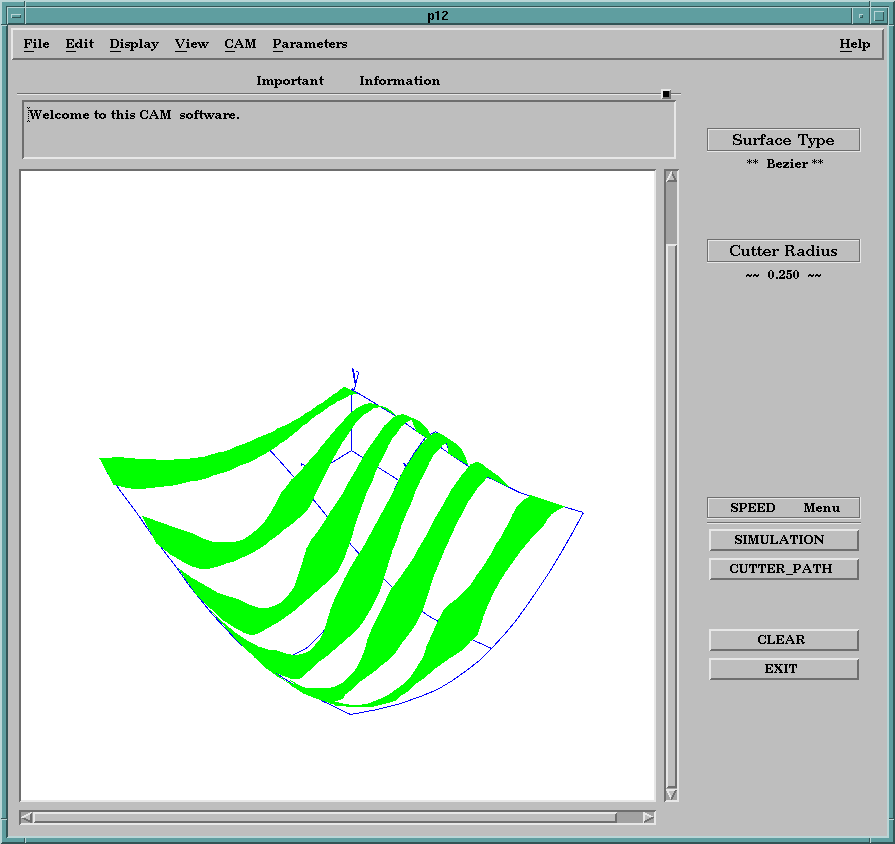

Tilting Angle:5 degrees, Screw Angle: 0 degree, Cutter Radius: 0.25 inches

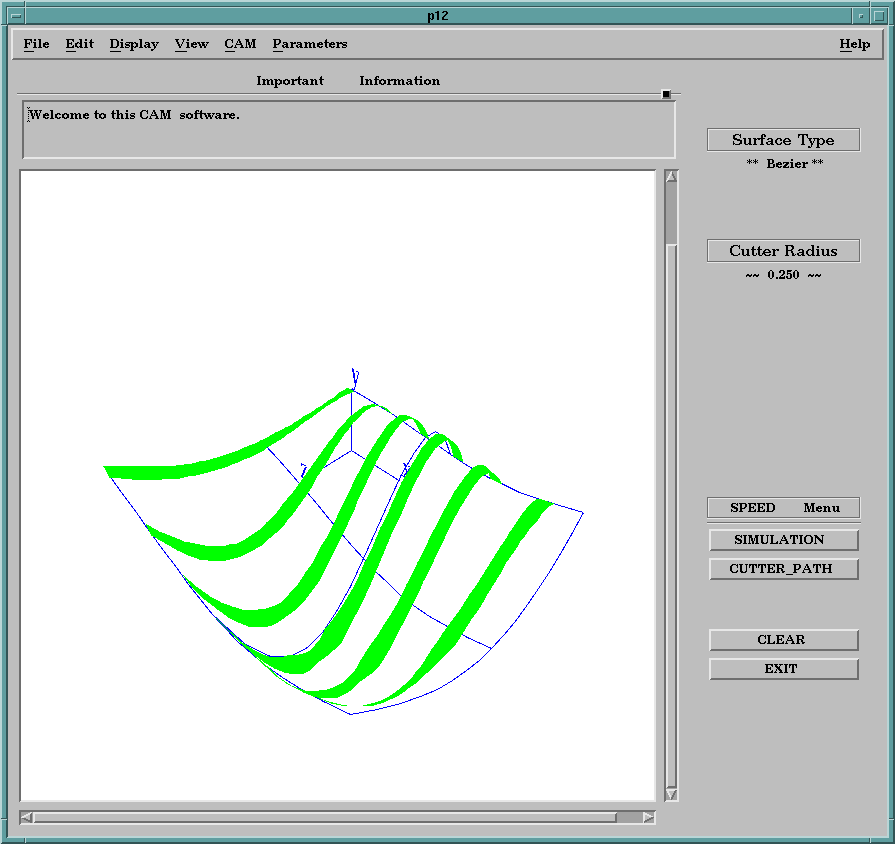

Tilting Angle: 20 degrees, Screw Angle: 0 degree, Cutter Radius: 0.25 inches

With Different Screwing Angles

Screw Angle: 0 degree, Tilting Angle:10 degrees, Cutter Radius: 0.25 inches

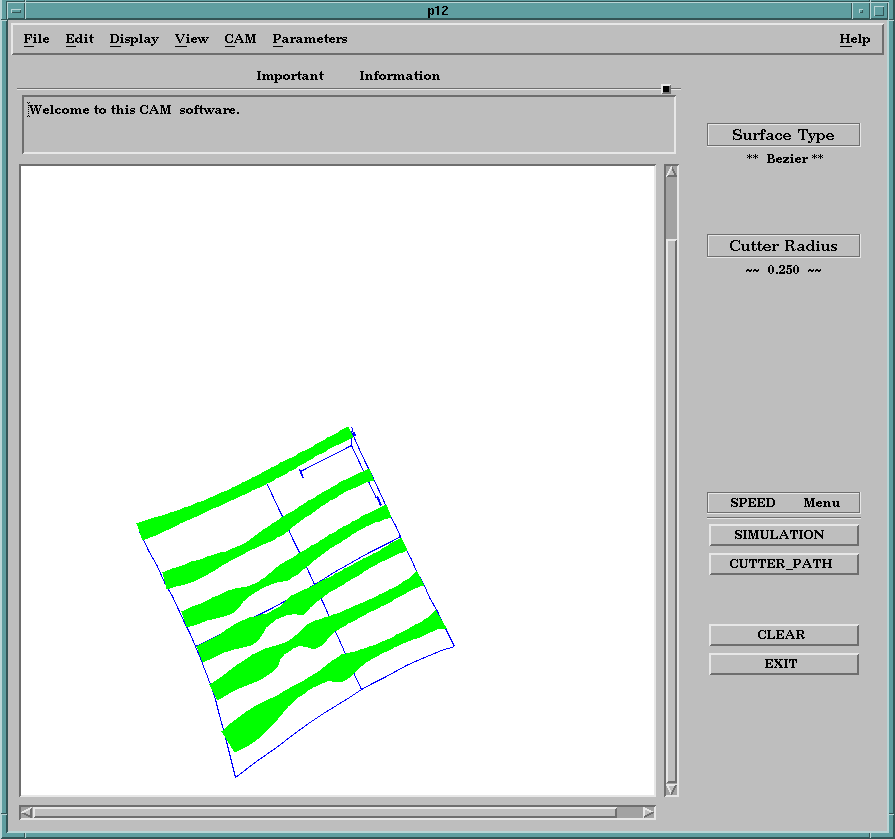

Screw Angle: 10 degree, Tilting Angle:10 degrees, Cutter Radius: 0.25 inches

Screw Angle: 20 degree, Tilting Angle:10 degrees, Cutter Radius: 0.25 inches
